Home
>>
Honda Truck
>>
2008
>>
Ridgeline V6-3.5L
>>
Repair and Diagnosis
>>
Maintenance
>>
Fuses and Circuit Breakers
>>
Fuse
>>
Locations
>>
Under-dash Fuse/Relay Box
Under-dash Fuse/Relay Box

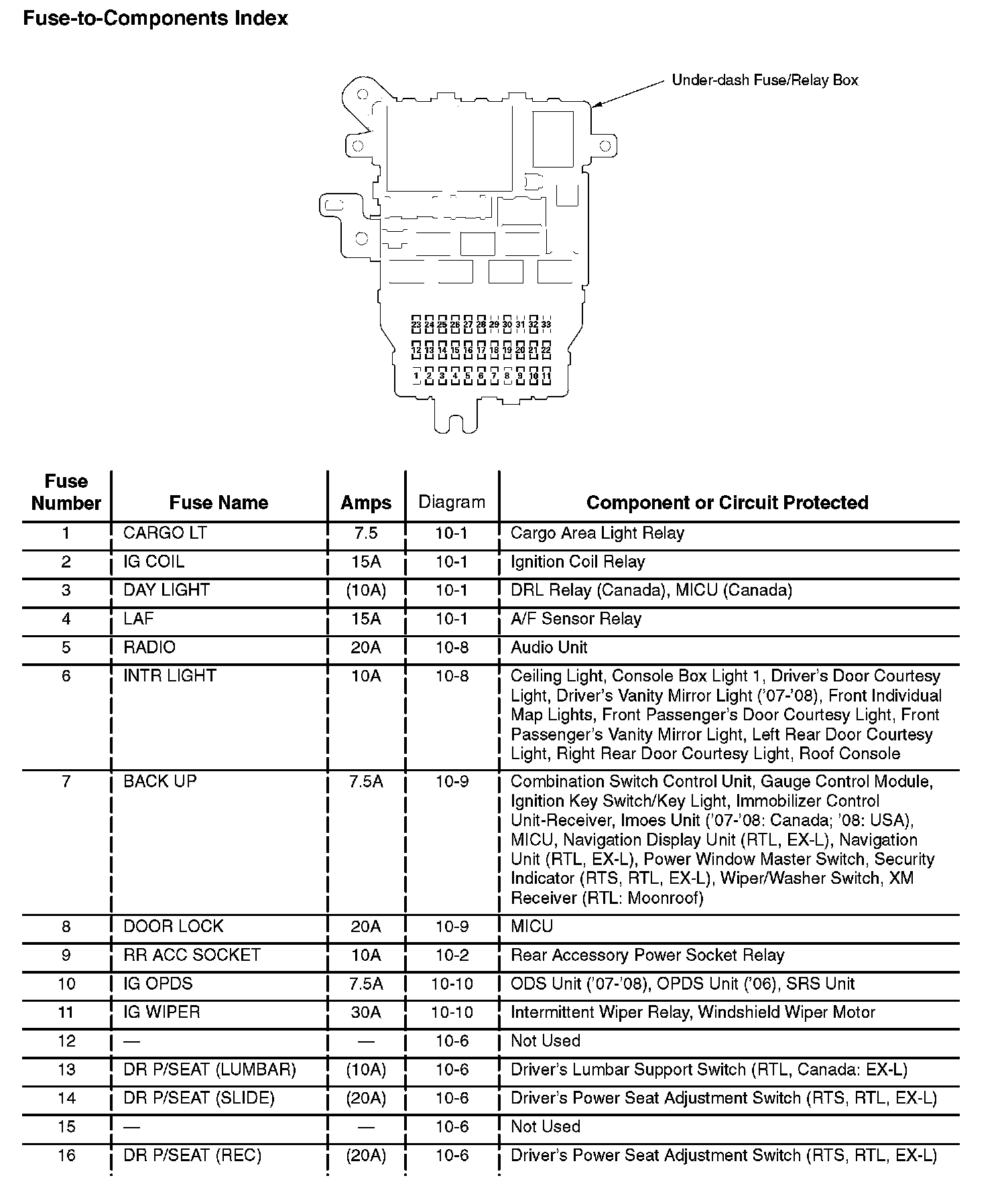

Under-dash Fuse/Relay Box, Part 1 Of 3:

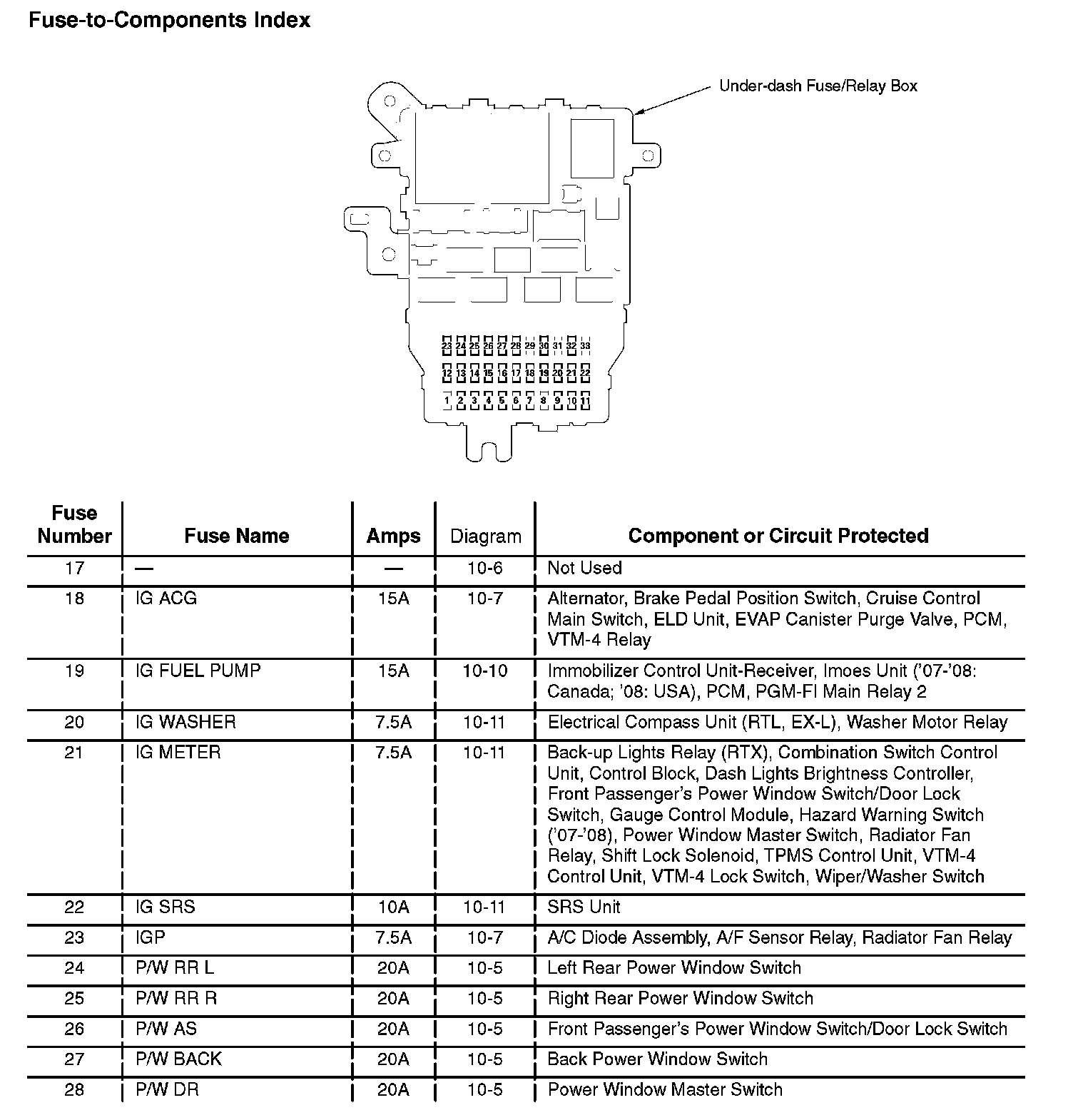

Under-dash Fuse/Relay Box, Part 2 Of 3:

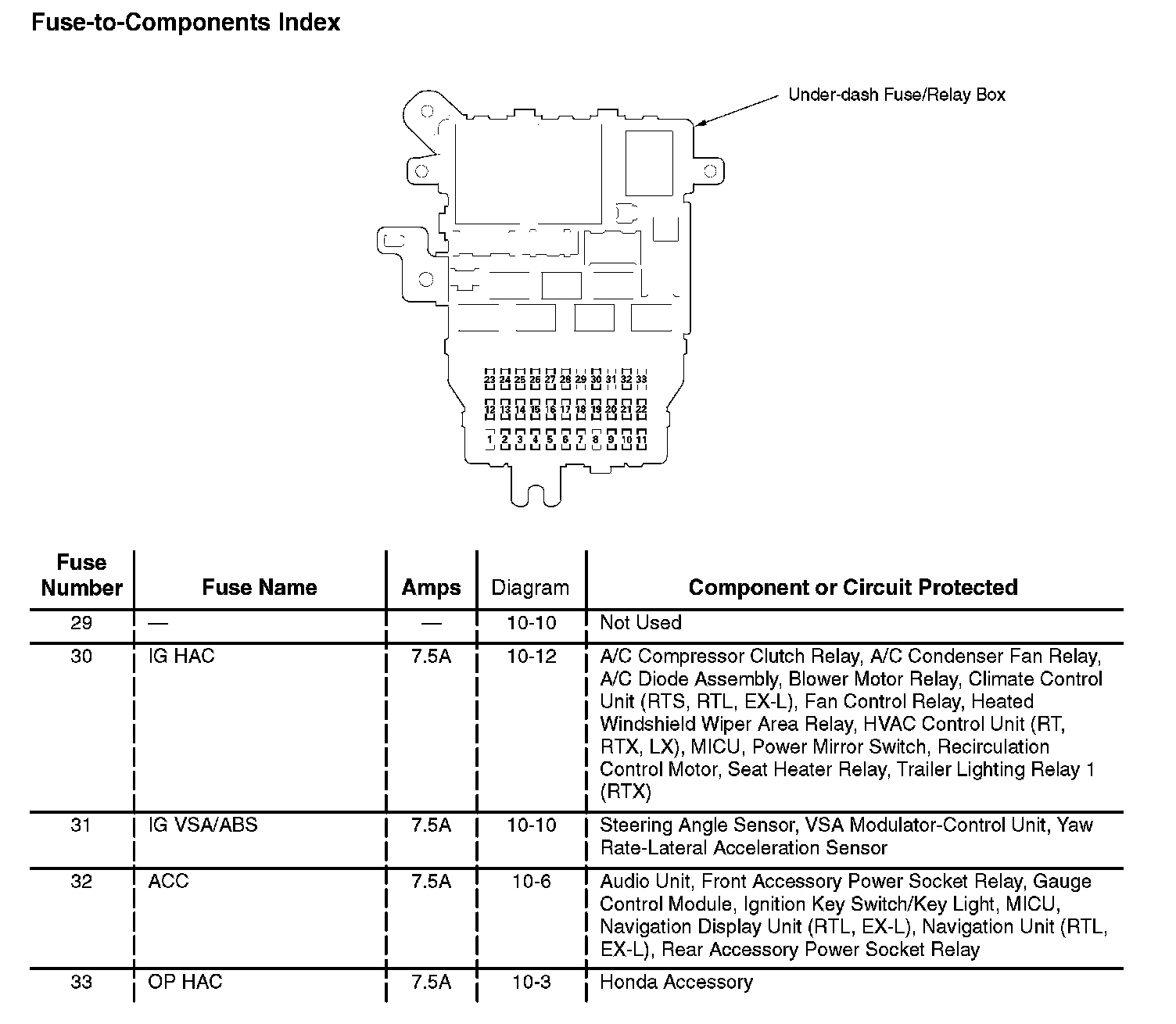

Under-dash Fuse/Relay Box, Part 3 Of 3:
